WHAT IS Light Wood?

is a material-efficient high-performance construction material with a patented structural design. A corrugated core, moulded out of compressed wood or plant fibre fleece, is sandwiched between two cover layers. Joined by force- and form-locking, this results in panels with outstanding rigidity.

This is a key differentiating feature of Light Wood, compared to all other lightweight construction materials. Light Wood is the perfect solution whenever heavy loads are involved – and where weight has to be kept to a minimum.

Furthermore, Light Wood sustainable, with production generating hardly any emissions. Light Wood therefore occupies a niche, particularly because there is no comparable high-strength lightweight wood-based construction material on the market. Despite saving over 50% material, we achieve 100% performance and stability.

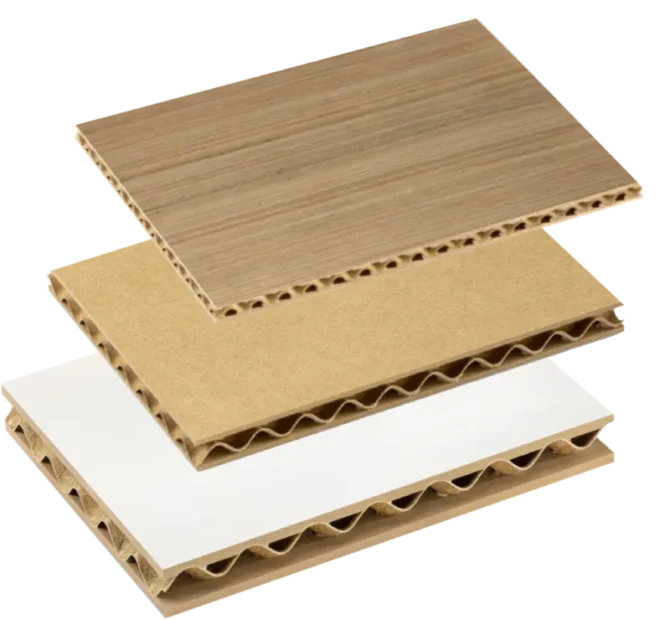

One of the unique features of Light Wood is the wide choice of cover layers that can be combined with panel cores in a variety of different thicknesses. Panel thickness ranges from 16 to 60 mm, enabling the material’s technical properties to be chosen according to the requirements of the specific application. Another unique feature of Light Wood is the wide range of different cover layers and coatings that can be used, including wood fibre, chipboard and veneer plywood. As far as the finish is concerned, various coatings are available.

Products – Standard Range

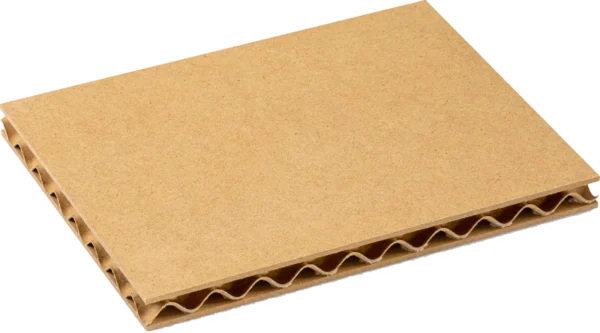

LIGHT WOOD HDF/MDF

WITH WOOD FIBRE COVER LAYERS

LIGHT WOOD HDF/MDF with wood fibre cover layers

Panel Sizes:

110″ x 81″

110″ x 48″

110″ x 33″

Formaldehyde: LIGHTWOOD is manufactured with E05 – compliant material.

Light Wood HDF/MDF with wood fibre cover layers can be used individually and provide the optimal basis for various coatings.

FURTHER INFORMATION

PANEL SIZE

110″ x 81″

110″ x 48″

110″ x 33″

TECHNICAL DATA

Panel Thickness
[in]
Cover layer Thickness
[in]
Density
[lb/in2]
Sqft Price
[Size 110.25″x81.5″]
HDF raw cover layer 3/4″ 1/8″ 20.6 $2.66
1″ 5/32″ 19.66 $3.03
MDF raw cover layer 11/2″ 5/16″ 19.98 $4.49
2″ 5/16″ 14.98 $4.52
23/8″ 5/16″ 12.49 $4.52

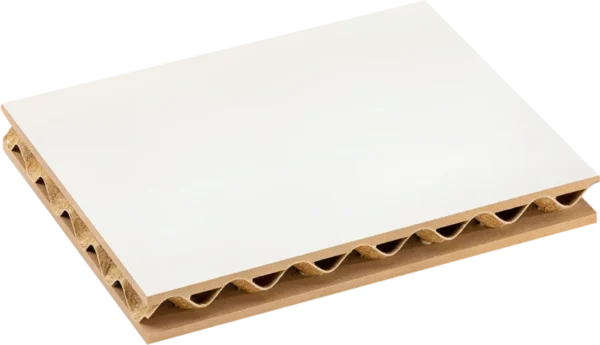

LIGHT WOOD RECOAT

WITH MELAMINE COVER LAYERS

LIGHT WOOD with melamine cover layers

Coating: Melamine film 0101 matt
(Cover layer: MDF)

Panel Sizes:

110″ x 81″

110″ x 48″

110″ x 33″

Our portfolio contains a range of the most popular solid colours and patterns. The melamine finish also produces an outstanding result when varnished.

FURTHER INFORMATION

PANEL SIZE

110″ x 81″

110″ x 48″

110″ x 33″

TECHNICAL DATA

Panel Thickness
[in]
Cover layer Thickness
[in]
Density
[lb/in2]
Sqft Price
[Size 110.25″x81.5″]
1″ 5/32″ 21.54 $3.99
11/2″ 5/16′ 20.6 $4.85
2″ 5/16″ 15.92 $4.89
23/8″ 5/16″ 13.42 $4.89

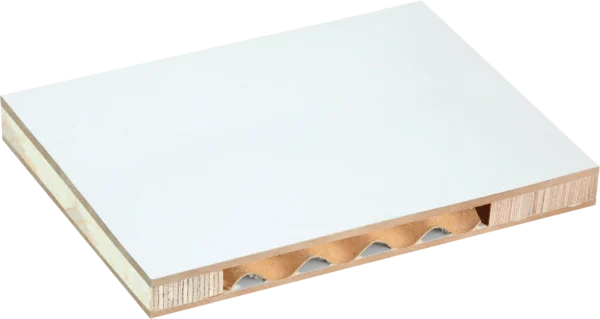

LIGHT WOOD SLIDE

THE SLIDING DOOR PANEL

LIGHT WOOD SLIDE – the sliding door panel

Panel thickness: 1.57″

Size: 110.24″x81.5″

Cover layer: 5/16″ MDF

Coating: LIGHTWOOD Recoat
Melamine Front White 0101 SM

Light Wood SLIDE is the perfect panel for oversize doors and other sliding elements. The veneered plywood inlays inserted on the front support all types of fastening system and are designed to support maximum loads.

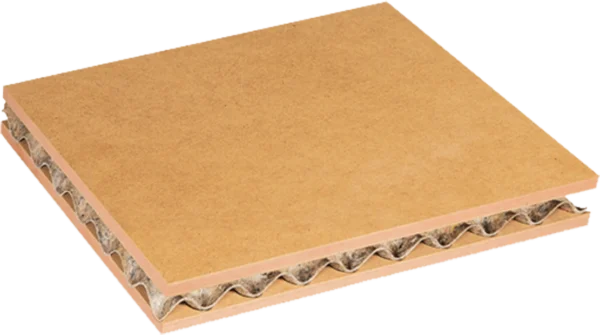

LIGHT WOOD FR

WITH WOOD FIBRE COVER LAYERS

FLAME RETARDANT MDF SANDED

LIGHT WOOD FR with wood fibre cover layers

Panel Size:

112″ x 82″

Burning behaviour (EN 13501-1):

B-s2, d0 – Very limited contribution to fire (limited smoke production/no droplets)

Formaldehyde: LIGHTWOOD is manufactured with E05 – compliant material.

FURTHER INFORMATION

PANEL SIZE

112″ x 82″

TECHNICAL DATA

Panel Thickness
[in]
Cover layer Thickness
[in]
Density
[lb/in2]
Sqft Price
11/2″ 2/5″ 29.34 $7.86
